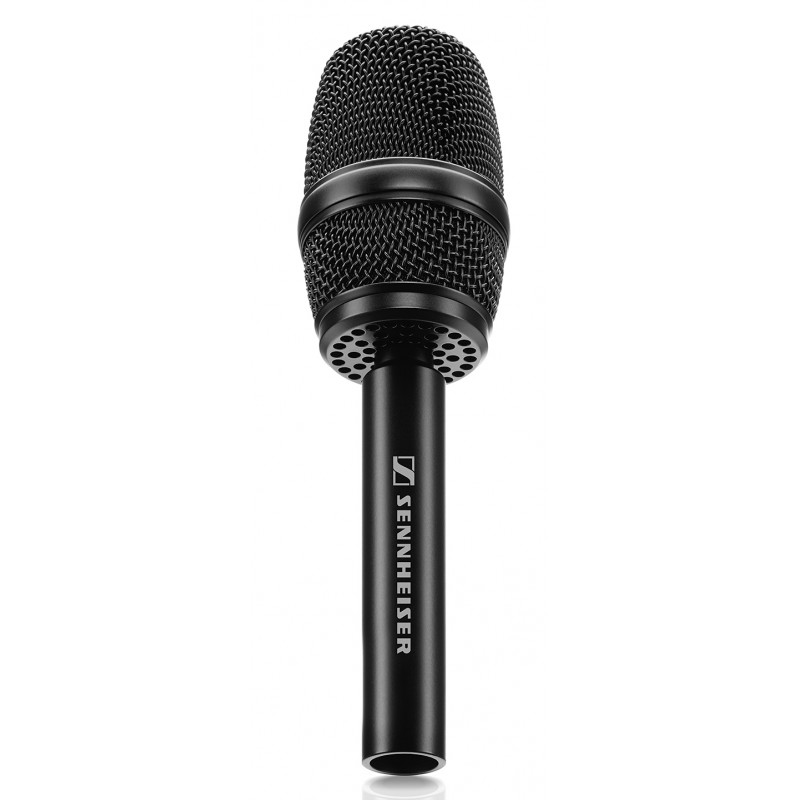

Sennheiser - AMBEO VR Mic

Sennheiser - AMBEO VR Mic
Sennheiser - AMBEO VR Mic
Product Code: AMBEO VR Mic
Sales SKU: 507195
$1,295.00
Qty:   - OR - Add to Wish List

Isn't it time that virtual reality (VR) audio matched the immersive, three-dimensional quality of virtual reality video? Enter Sennheiser's AMBEO VR Mic, the new standard in 3D audio capture that takes VR audio production to a new, professional level. With the AMBEO VR Mic you are able to seamlessly record sound that captivates the listener and creates a highly emotional experience for them.

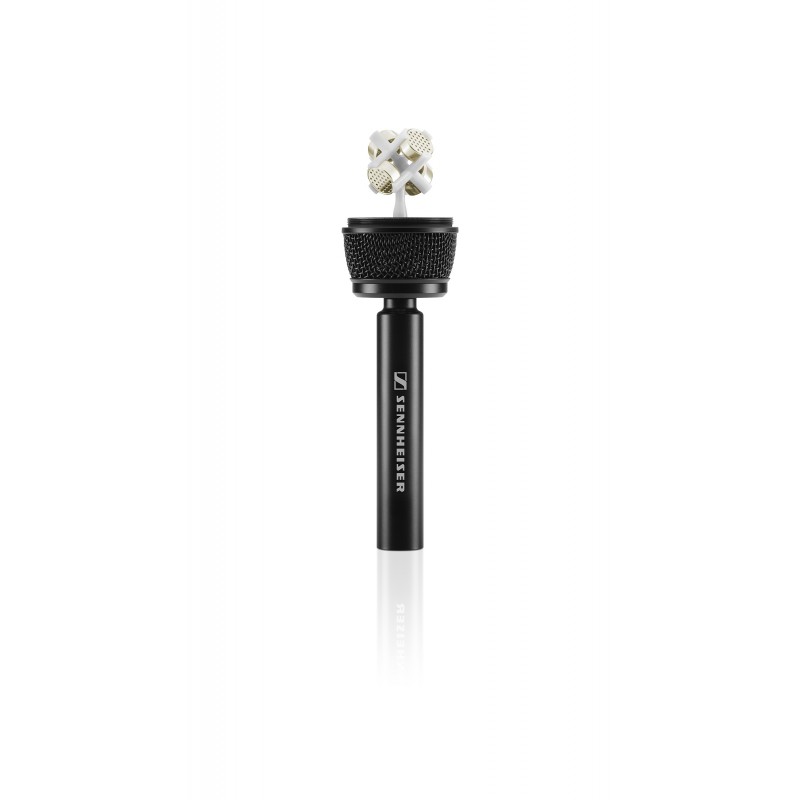

The easy-to-use AMBEO VR Mic is an ambisonic microphone fitted with four matched KE 14 capsules in a tetrahedral arrangement. This special design allows you to capture the sound that surrounds you from a single point. As a result you get a fully-spherical, 360 degree sound to match your VR video content.



INCLUDES

  • ​AMBEO VR Mic
  • Rycote INV 7 Suspension mount
  • Split cable 4XLR
  • Wind Shield



Dimensions

215 x 49/25 mm (L x D)



Frequency response

20 Hz to 20 kHz



Max. sound pressure level

130 dB(A) for 1 kHz



Transducer principle

Pre-polarized condenser microphone



Weight

1.060 g



Microphone connector

DIN12M, use enclosed adapter cable to convert to 4x XLR3M Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)





Pick-up pattern

4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])



Nominal impedance

Approx. 200 Ω



Min. terminating impedance

1000 Ω



Storage temperature

-20 °C to 70 °C (-4 °F to 158 °F)



Operating temperature

-10 °C to 55 °C (14 °F to 131 °F)



Equivalent noise level

18 dB-A as per IEC 61672-1 / 27 dB CCIR as per CCIR 468-3



Power supply

4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each



Sensitivity

31 mV/Pa (-30 dBV)



Operating relative humidity

Max 90% at 40 °C



Matrix reference

Center of the capsule holder



Mixing to B-format

W = FLU + FRD + BLD + BRU / X = FLU + FRD – BLD – BRU / Y = FLU – FRD + BLD – BRU / Z = FLU – FRD – BLD + BRU
