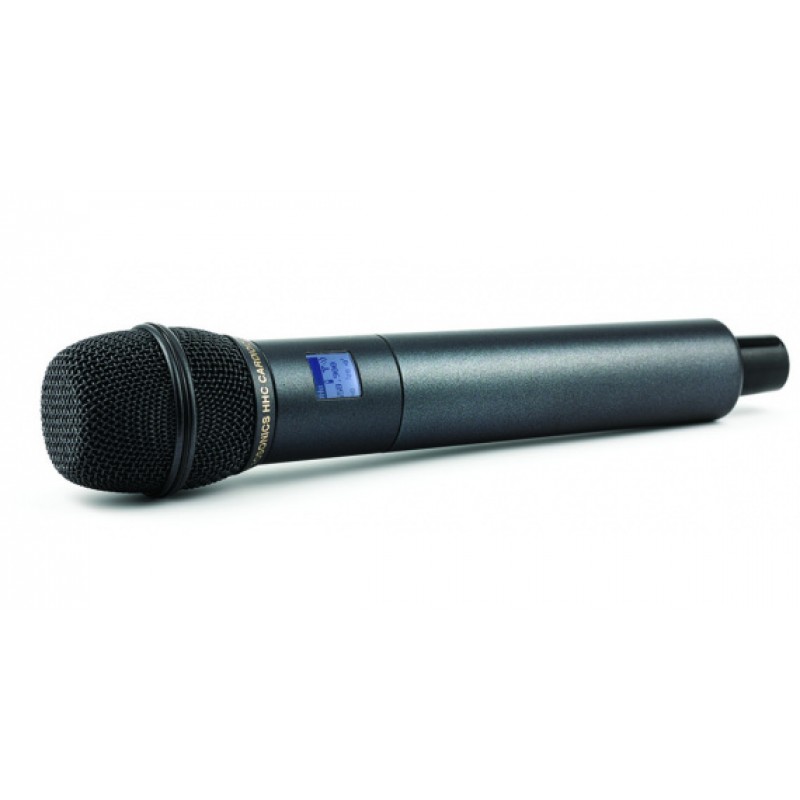

• Lectrosonics - DHu-A1B1 Digital Wideband Handheld Transmitter

Features

  • 4th generation digital design
  • 256-bit encryption - AES 256-CTR
  • Interchangeable thread-on capsules
  • Battery powered by two AA batteries
  • Selectable RF output power at 25 or 50 mW
  • 2-way IR (Infrared) port for fast setup
  • 24 bit/48 kHz digital conversion
  • Rugged machined aluminum housing

The DHu Digital Encrypted handheld transmitter represents a versatile solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The design incorporates advanced features to provide high-quality speech and vocal reinforcement.

Interchangeable Capsules

Lectrosonics offers the HHC cardioid condenser capsule. Thread-on capsules from other manufacturers using a 1.25” opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure®, Heil SoundTM, Earthworks®, Telefunken® and others.*

The transmitter benefits from a 4th generation design with specially developed, high-efficiency digital circuitry for extended operating time on two AA batteries. The transmitter can tune across the UHF television band from 470 to 608 MHz (470 to 614 Mhz for export versions) with a selectable output power of 25 or 50 mW. The pure digital architecture enables AES 256-CTR encryption for applications that require high-level security.

Studio quality audio performance is assured by high-quality components, wide range audio gain adjustment in fine increments, and a DSP-controlled, dual envelope limiter. Low-frequency audio roll-off is adjustable to tailor the sound as needed for a variety of applications.

Setup is easy using membrane switches on a concealed control panel. An IR (infrared) port on the control panel allows settings to be transferred between receiver and transmitter.

A programmable switch on the outside of the housing can be configured for push-to-talk, cough, mute, talkback, power on/off, or be bypassed.


Included Accessories

  • 1 - CCHH Zippered pouch
  • 1 - 13585 mic clip
  • 1 - P1298 anti-roll sleeve
  • 2 - AA Batteries

Compatible Capsules

Lectrosonics

  • HHC cardioid condenser element
  • HHVMC cardioid condenser element with VariMic™ tone controls

Shure®

  • RPW110 capsule head with PG58 silver dynamic element
  • RPW112 capsule head with SM58 silver dynamic element
  • RPW114 capsule head with SM86 silver condenser element
  • RPW116 capsule head with SM87A black condenser element
  • RPW118 capsule head with Beta 58A dynamic element
  • RPW120 capsule head with Beta 87A silver condenser element
  • RPW122 capsule head with Beta 87C silver condenser element
  • RPW124 capsule head with VP68 black omni condenser element
  • RPW170 capsule head with KSM8 silver Dualdyne cardioid dynamic
  • RPW174 capsule head with KSM8 black Dualdyne cardioid dynamic
  • RPW180 capsule head with KSM9 champagne switchable cardioid/supercardioid condenser
  • RPW184 capsule head with KSM9 black switchable cardioid/supercardioid condenser
  • RPW182 capsule head with KSM9HS champagne switchable wide cardioid/
    hypercardioid condenser
  • RPW186 capsule head with KSM9HS black switchable wide cardioid/hypercardioid condenser

EV®

  • RC2-767 – Supercardioid dynamic N/D767a
  • RC2-967 – Supercardioid dynamic N/D967
  • RC2-PL80a – Supercardioid dynamic PL80a
  • RC2-410 – Cardioid condenser RE410
  • RC2-510 – Supercardioid Condenser RE510
  • ND76-RC3 - Wireless head with ND76 dynamic cardioid capsule
  • ND86-RC3 - Wireless head with ND86 dynamic supercardioid capsule
  • ND96-RC3  - Wireless head with ND96 dynamic supercardioid capsule
  • RE420-RC3 - Wireless head with RE420 condenser cardioid capsule
  • RE520-RC3 - Wireless head with RE520 condenser supercardioid capsule

Heil Sound™

  • RC35

Earthworks®

  • WL40V - cardioid condenser element

Audix®

(all Audix capsules require a Sound Tools audix2shure adapter)T363-CA capsule assembly with OM3 dynamic element)

  • T365-CA capsule assembly with OM5 dynamic element
  • T366-CA capsule assembly with OM6 dynamic element
  • T367-CA capsule assembly with OM7 dynamic element

DPA®

  • d:facto II

Neumann®

(all Neumann capsules require an adapter - see below)

  • KK104-S cardioid condenser element (requires Ambient HHA adapter set at 15V)
  • KK105-HD supercardioid condenser element (requires Ambient HHA adapter set at
    15V)
  • KK105-S supercardoid condenser element (requires Ambient HHA adapter set at 15V
  • KK204 cardioid condenser element (requires Lectrosonics HH2SEN adapter)
  • KK205 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)

Sennheiser®

(all Sennheiser capsules require an adapter - see below)

  • MD5235 dynamic cardioid element (requires Ambient HHA adapter)
  • ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
  • ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
  • E5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
  • ME5005-E supercardioid condenser element optimized for live sound applications
    (requires Ambient HHA adapter set at 7V)
  • ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
  • MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN
    adapter)
  • MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
  • MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)

Telefunken®

  • M80 WH
  • M81 WH

*The brand names and product models listed here are trademarks of their respective companies and copyright holders. These companies have no direct relationship with Lectrosonics.


Specifications

Frequency range: DHu 470.100 - 607.950 MHz

Frequency selection steps: Selectable; 100 kHz or 25 kHz

RF Power output: Selectable; 25 or 50 mW

Frequency stability: ± 0.002%

Digital Modulation: 8 psk

Spurious radiation: DHu Compliant ETSI EN 300 422-1 v1.4.2 DHu/E01 and E01-B1C1 Compliant ETSI EN 300 422-1

Operating temperature range: -20° C to +50° C; -5° C to +122° F

Input compressor: Dual envelope compressor, >30 dB range

Gain control range: 45 dB; semi-log menu-driven control; 1 dB steps

Modulation indicators: Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator

Frequency response 40 Hz to 20 kHz (+/- 1dB)

Low frequency roll-off: -3 dB @35, 50 and 70 Hz; selectable; 36 dB/octave

Controls: External: Programmable mute/talkback button

Battery compartment: Power, mute disable, menu/select, up/down, and back arrow buttons for menu selection and settings

Battery: 2x AA with polarity protection and battery ejector

Battery life: At 50 mW: 5 hours (Duracell Quantum); battery status is transmitted to Lectrosonics receivers Capsule Interface: 1.25” opening and 28 thread pitch

Power available: 5V, 25 mA max

Input impedance: 1000 Ohms

Weight: 12.1 oz. with batteries and HHC capsule

Dimensions: 9.5” long x 1.97” diameter at largest point

Emission Designator: 200KG1E

Lectrosonics - DHu-A1B1 Digital Wideband Handheld Transmitter

  • $1,769.00
