Features

  • Two diversity options for maximum flexibility
  • 24 bit/48 kHz digital for flawless audio
  • AES 256-bit, CTR mode encryption, with 4 different key policies available
  • High IP3 performance of +15 dBm for tough RF environments
  • Analog and AES3 digital audio outputs
  • External DC powering options and USB input for firmware updates and data transfer

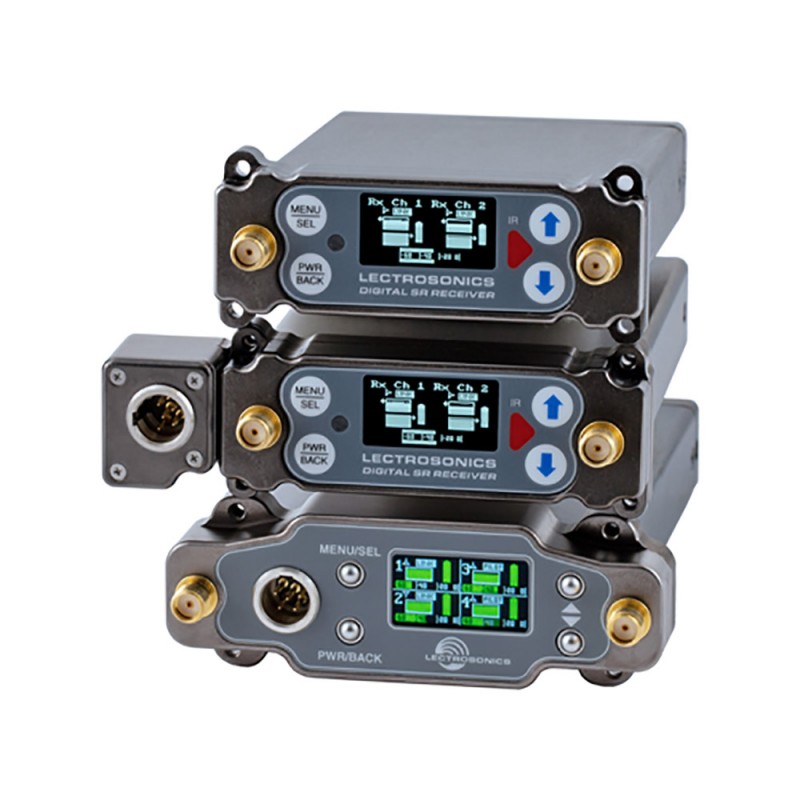

The DSR4 digital receiver provides the highest level of RF and audio performance available with a versatile feature set in a compact design for field and location production. Settings can be made from the front panel with tactile buttons and color LCD interface, making the unit ideal for use in portable bag systems and on sound carts. An RF spectrum analyzer and SmartTune are built into the
receiver to alleviate interference problems in an increasingly congested RF spectrum.

The mechanical design of the receiver fits into the Super-Slot ecosystem and combines field-proven features developed over many years of experience in motion picture and television production. To decrease weight, the DSR4 provides a four channel receiver in one unit powered by external DC. The receiver is also equipped with an IR port for data transfer between units. The machined aluminum housing and panels are surfaced with a hardanodized finish with laser etched markings to withstand
the rigors of field production.

The RF gain stages in the front end use a newly developed design to provide low noise RF amplification, excellent sensitivity and extremely low susceptibility to intermodulation and de-sensitization.


Included Accessories

  • 1 - Quickstart Guide
  • A1B1 units (all)

    2 - AMJ-19 jointed SMA antennas

    2 - AMJ-22 jointed SMA antennas

  • B1C1 units (all)

    2 - AMJ-22 jointed SMA antennas

    2 - AMJ-25 jointed SMA antennas

  • 941 units (all)

    2 - AMJ-944 jointed SMA antennas

  • 961 units (all)

    2 - AMJ-961 jointed SMA antennas

Specifications
Capacity Specifications

Operating Frequencies (MHz): Model A1B1: 470.100 - 614.375

Frequency Selection Steps: 25 kHz

Frequency Stability: ±0.001%

Front end bandwidth: ±5.5 MHz, @ -3 dB Sensitivity: 20 dB

Sinad: 0.9 uV(-108 dBm), A weighted 60 dB

Quieting: 1.12 uV (-105 dBm), A weighted

AM rejection: >60 dB, 2 uV to 1 Volt

Modulation acceptance: 85 kHz

Spurious rejection: 85 dB

Third order intercept: +15 dBm

Diversity method: Antenna phase switching (4 channel operation) Vector diversity (2 channel operation)

Antenna inputs: 50 Ohm; SMA female connectors Audio output connectors: • Interchangeable D connector adapters or camera slot interfaces • Dual TA5 male (mini XLR) balanced output adapter • Battery sled adapters with TA5 male outputs. • Front panel TA5 male for AES3 outputs or . analog output channels 3 and 4.

Frequency Response: 25 Hz to 20 kHz (+0/-3 dB) THD: 0.2% (typical)

Input Dynamic Range: 125 dB (with full Tx limiting)

Overall Latency (time delay): 1.4 ms with digital source, <2.9 ms with Hybrid TX Audio

Test Tone: 1 KHz, -50 to +7 dBu, <1%THD

Front Panel: • Color LCD display • Menu/Sel, Pwr/Back, Up/Down Arrow Buttons • USB Port • IR Port

Rear Panel: • Proprietary connector for audio/power accessory panels.

External Power: Minimum 9 Volts to maximum 17 VDC 3.2 W; 170 mA at 12 VDC

Weight: 408 grams (14.4 oz.) w/o audio adapter

Dimensions: 3.23” wide x 1.23” high x 5.50” deep 82 wide x 31 high x 140 deep mm

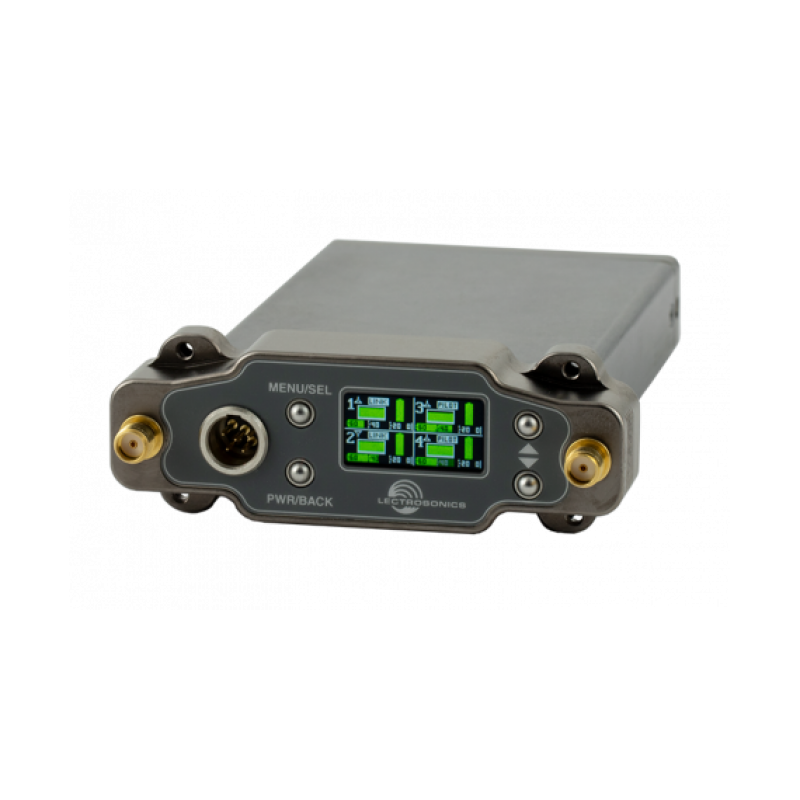

Lectrosonics - DSR4-A1B1 Four Channel Digital Slot Receiver

  • $6,083.00
